Sailing vessels Motor vessels Work boats Selected designs of motor vessels and yachts:

Deters Aluminium Work Vessel

Main Particulars

Type: Aluminium Work Vessel
Length o.a.: 20,00m
Breadth: 5,50m
Draught: 1,35m
Status: Concept design
Year: 2012

Further Information

Design Description

Concept Design of a multipurpose aluminium work vessel for Deters Yacht- und Bootswerft.

Island Bus Ferry

Main Particulars

Type: Island Shuttle Ferry
Length o.a.: 22,00m
Breadth: 5,70m
Draught: 1,20m
Status: Concept design
Year: 2012

Further Information

Design Description

Concept Design of an aluminium shuttle boat for use as island ferry.

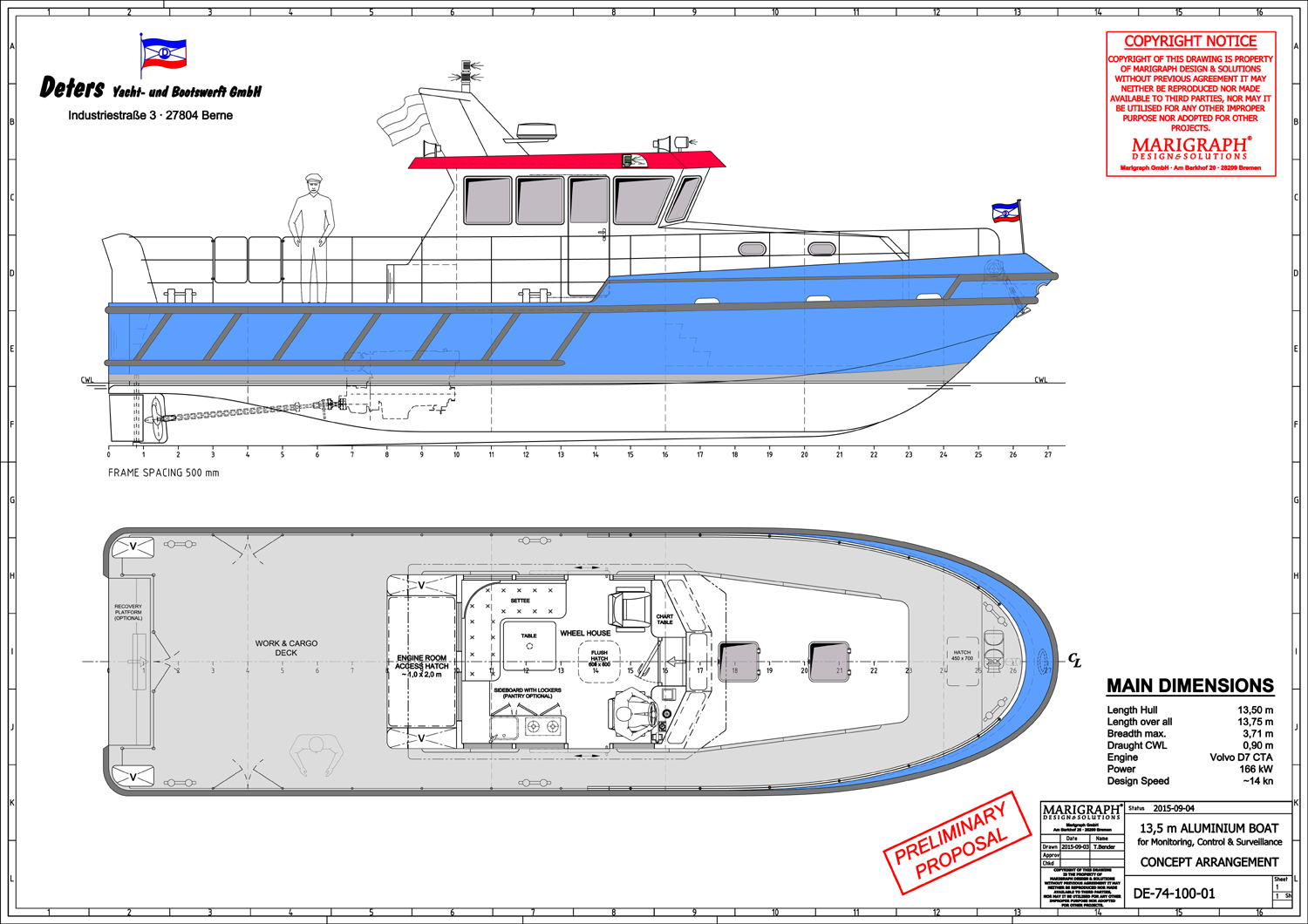

Deters MCS Boat

Main Particulars

Type: Aluminium MCS Boat
Length o.a.: 13,50m
Breadth: 3,71m
Draught: 0,90m
Status: Concept design
Year: 2015

Further Information

Design Description

Concept Design of an aluminium MCS boat for Deters Yacht- und Bootswerft.

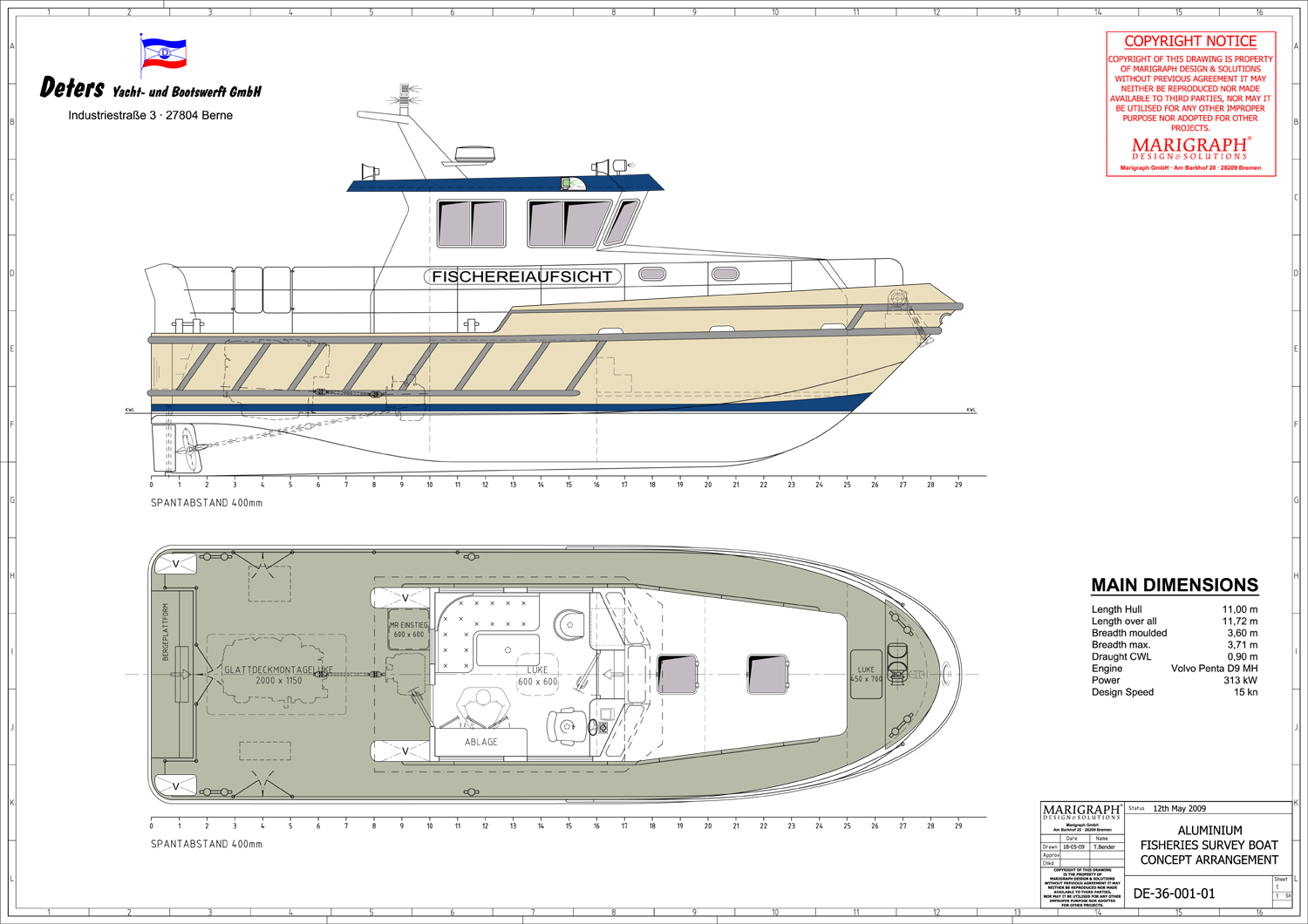

Fisheries Survey Boat

Main Particulars

Type: Fisheries Survey Boat
Length o.a.: 11,72m
Breadth: 3,71m
Draught: 0,90m
Status: Concept design
Year: 2009

Further Information

Design Description

Concept Design of an aluminium fisheries survey boat for Deters Yacht- und Bootswerft.

Patrol Boat 10 m

Main Particulars

Type: Aluminium Patrol Boat
Length o.a.: 10,00m
Breadth: 3,30m
Draught: 0,65m
Status: Preliminary design
Year: 2007

Further Information

Design Description

Universal patrol boat with waterjet propulsion.

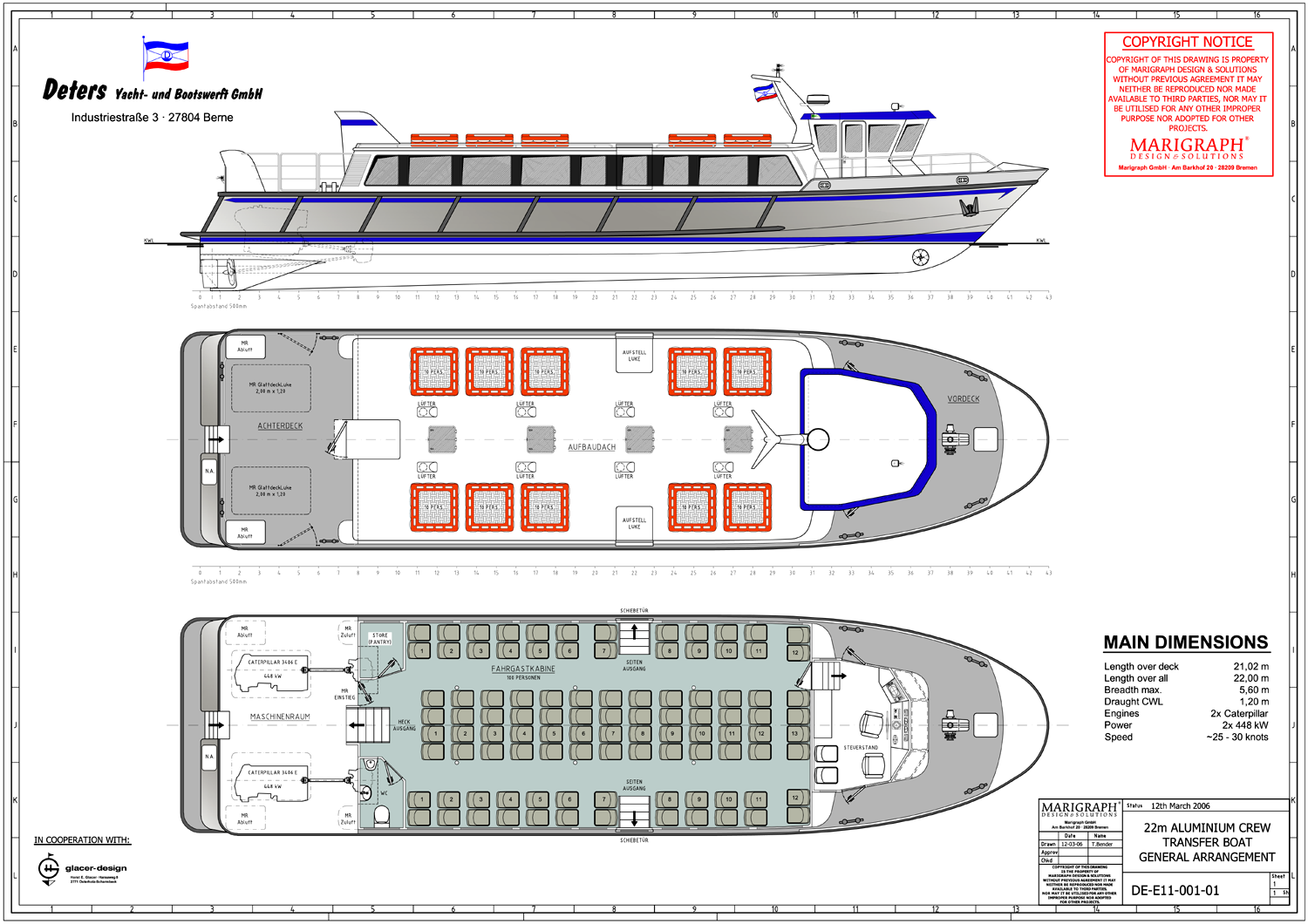

Deters Crew Transfer Boat

Main Particulars

Type: Aluminium Crew Transfer Boat
Length o.a.: 22,00m
Breadth: 5,60m
Draught: 1,20m
Status: Preliminary design
Year: 2006

Design Description

High speed vessel for rapid crew transfer up to 100 persons.

Motoryacht 14 Meter

Main Particulars

Type: Motoryacht
Length o.a.: 13,60m
Breadth: 4,10m
Draught: 1,20m
Status: Preliminary design
Year: 2004

Further Information

Design Description

Mobile yacht with classic lines, huge owners cabin, exact specification and equipment can be adjusted according to respective customers preferences.

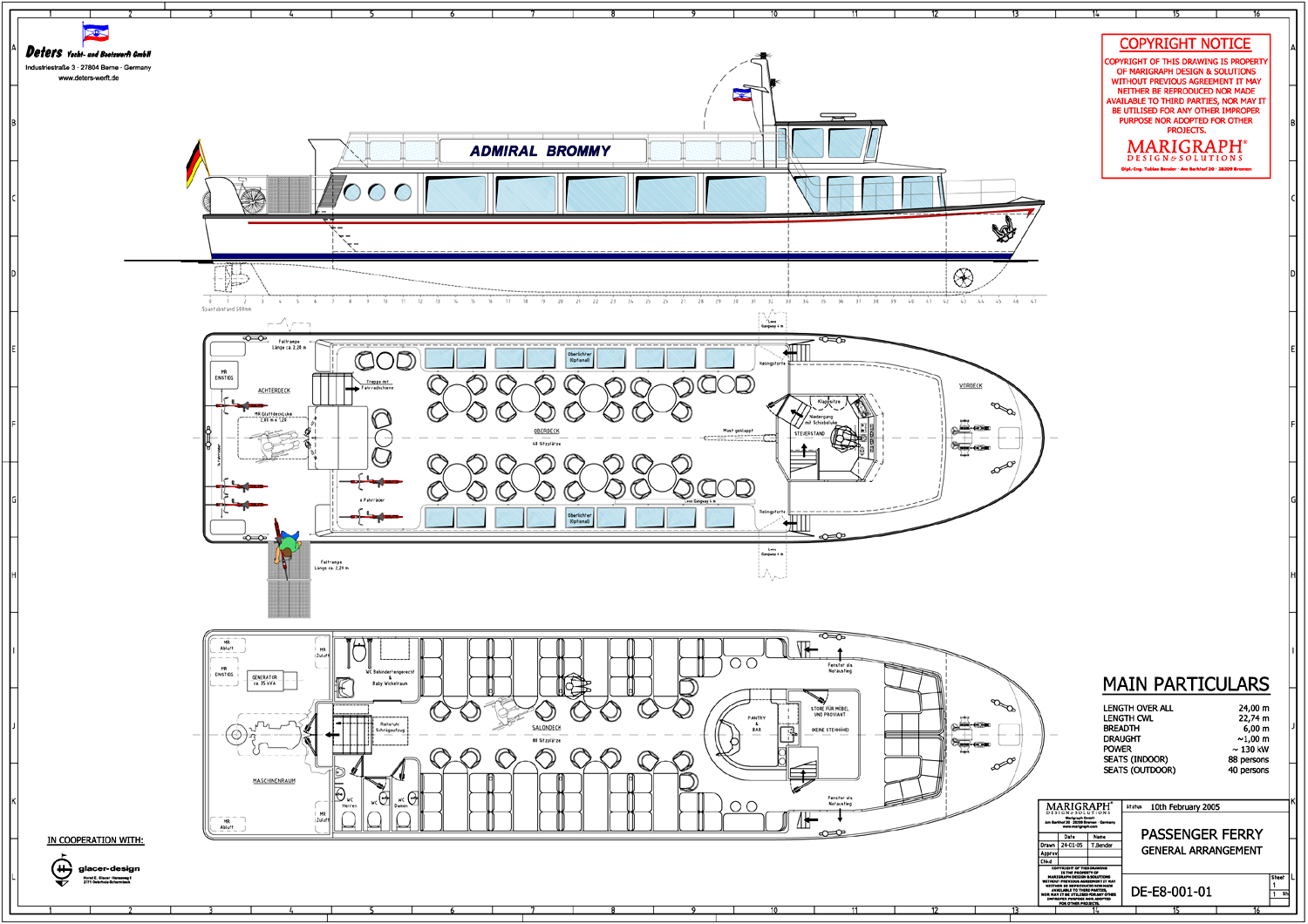

Admiral Brommy

Main Particulars

Type: Passenger Ferry
Length o.a.: 24,00m
Breadth: 6,00m
Draught: 1,00m
Status: Preliminary design
Year: 2005

Further Information

Design Description

Passenger vessel for combined ferry and cruise service on rivers and coastal waters.

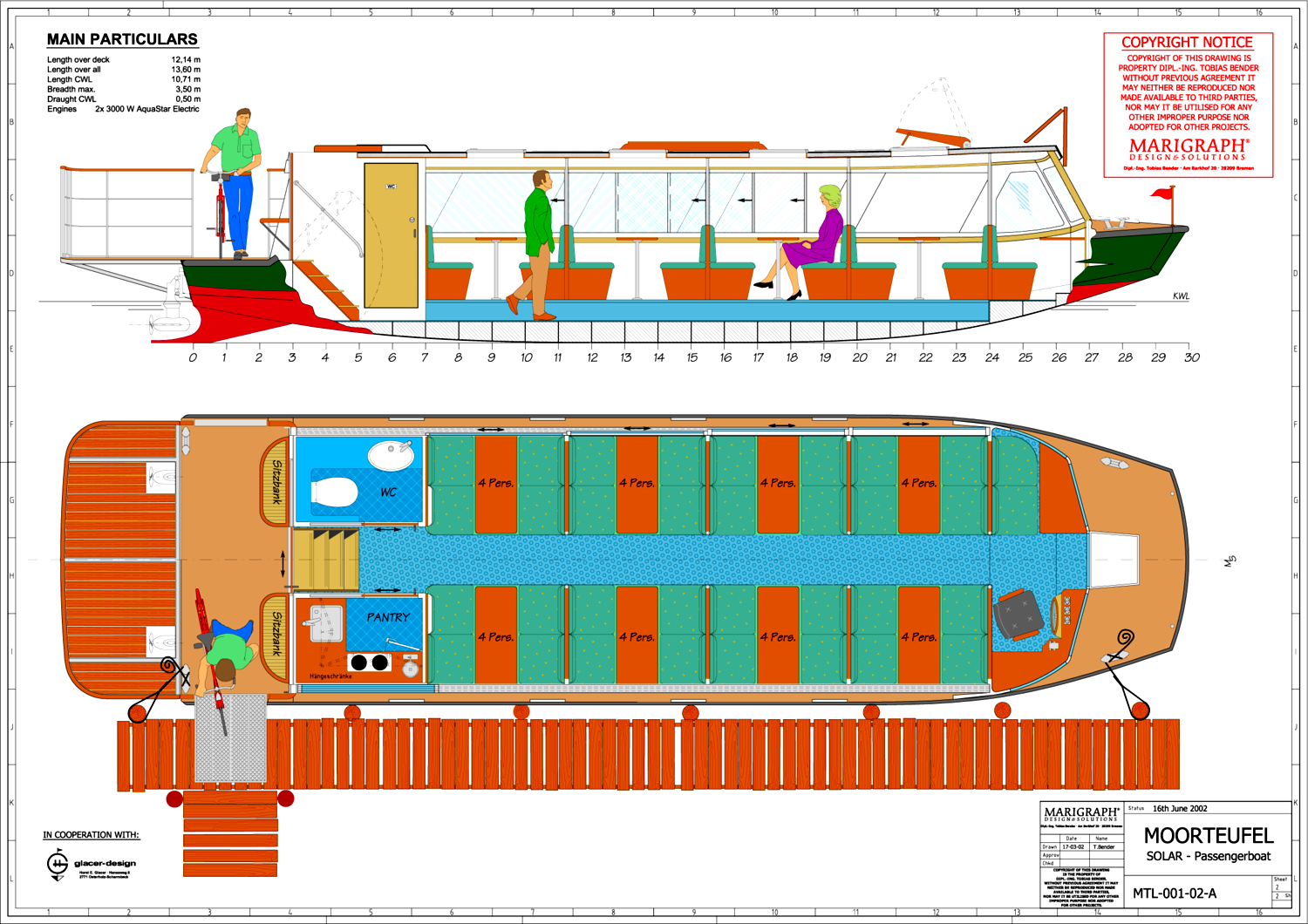

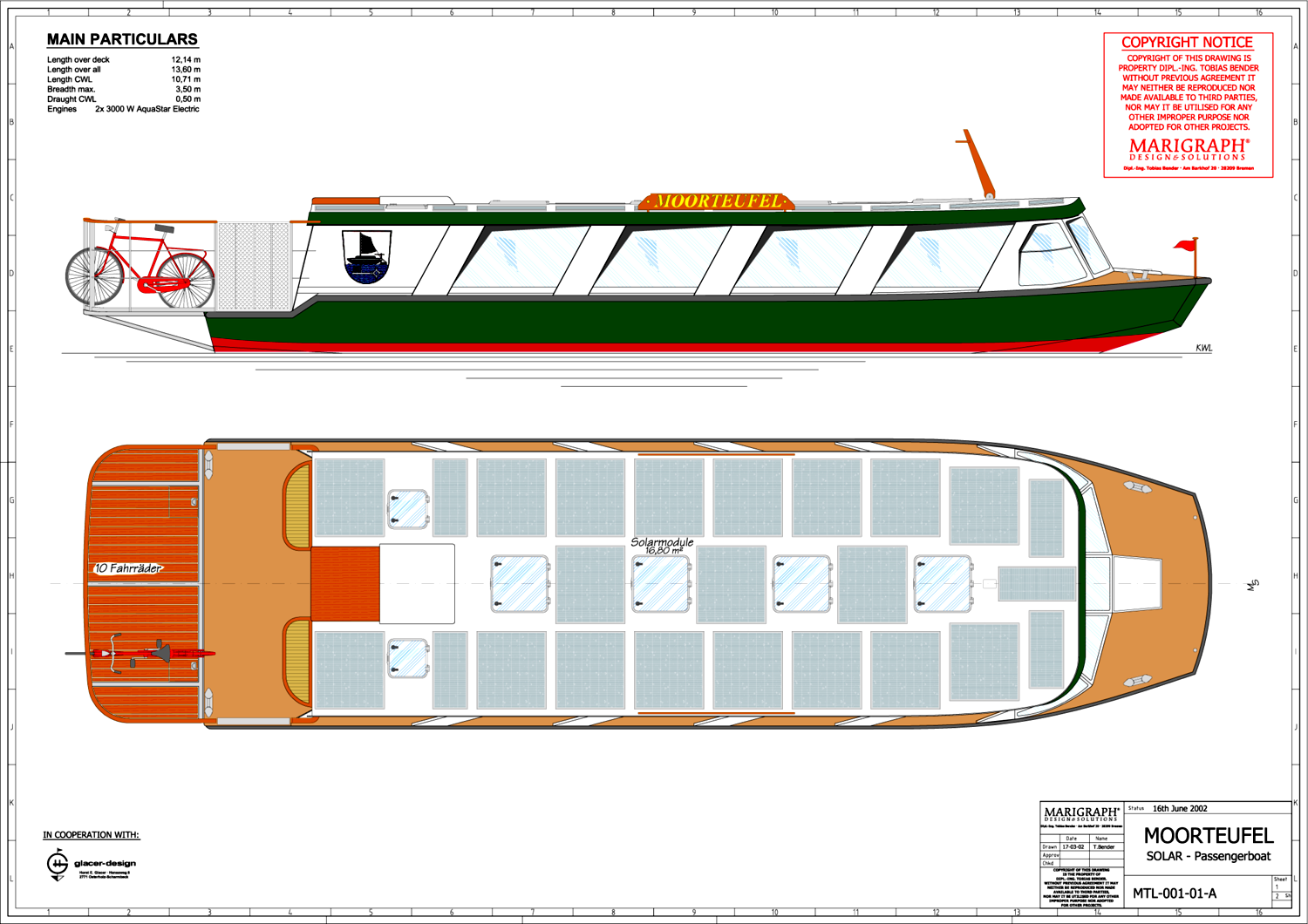

Moorteufel

Main Particulars

Type: Solar Passenger Boat
Length o.a.: 13,60m
Breadth: 3,50m
Draught: 0,50m
Status: Preliminary design
Year: 2005

Design Description

Concept of an excursion and passenger ship with electric drive and solar cells. Dimensions tailored for use on inland waterways on lakes, rivers and canals.

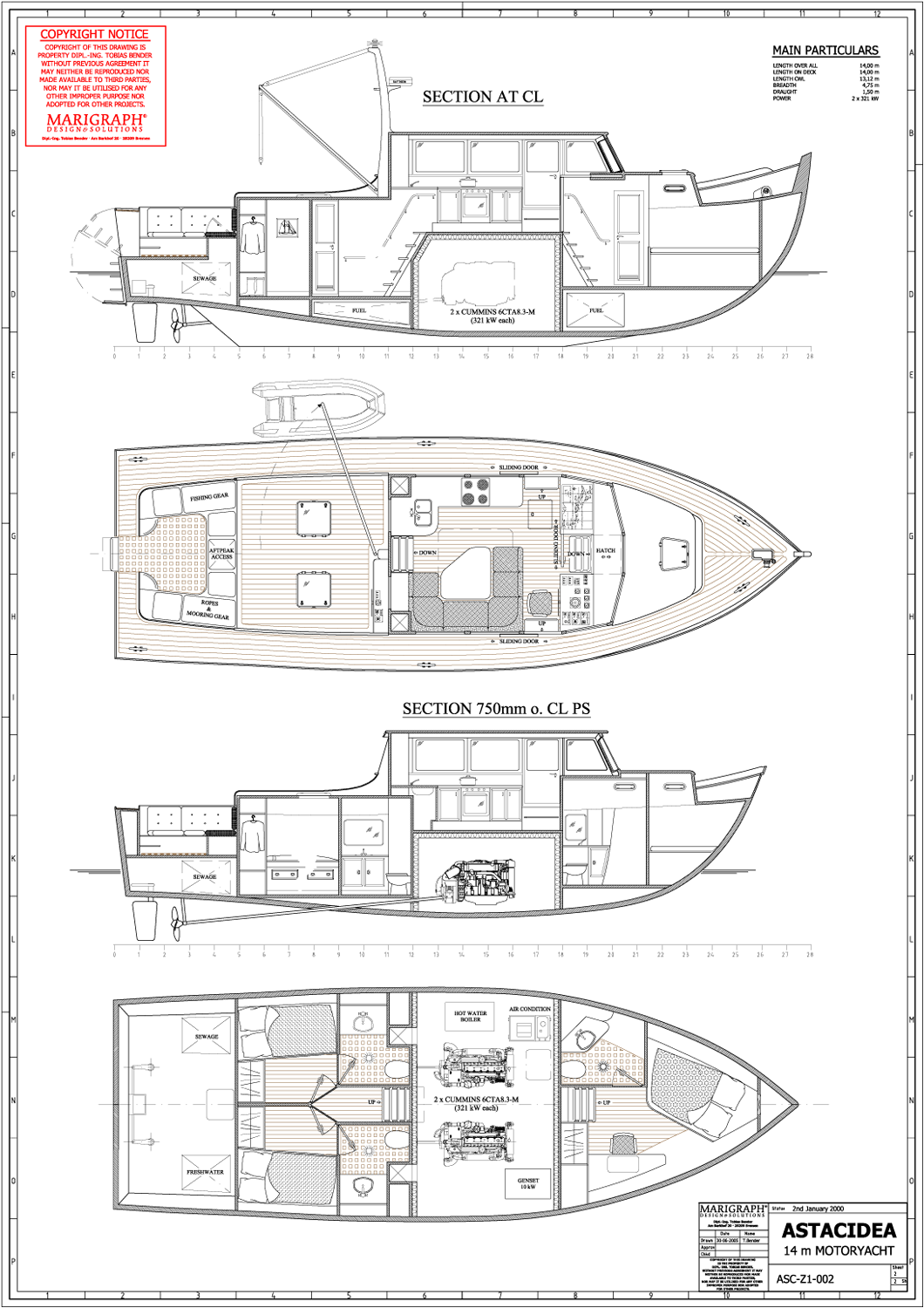

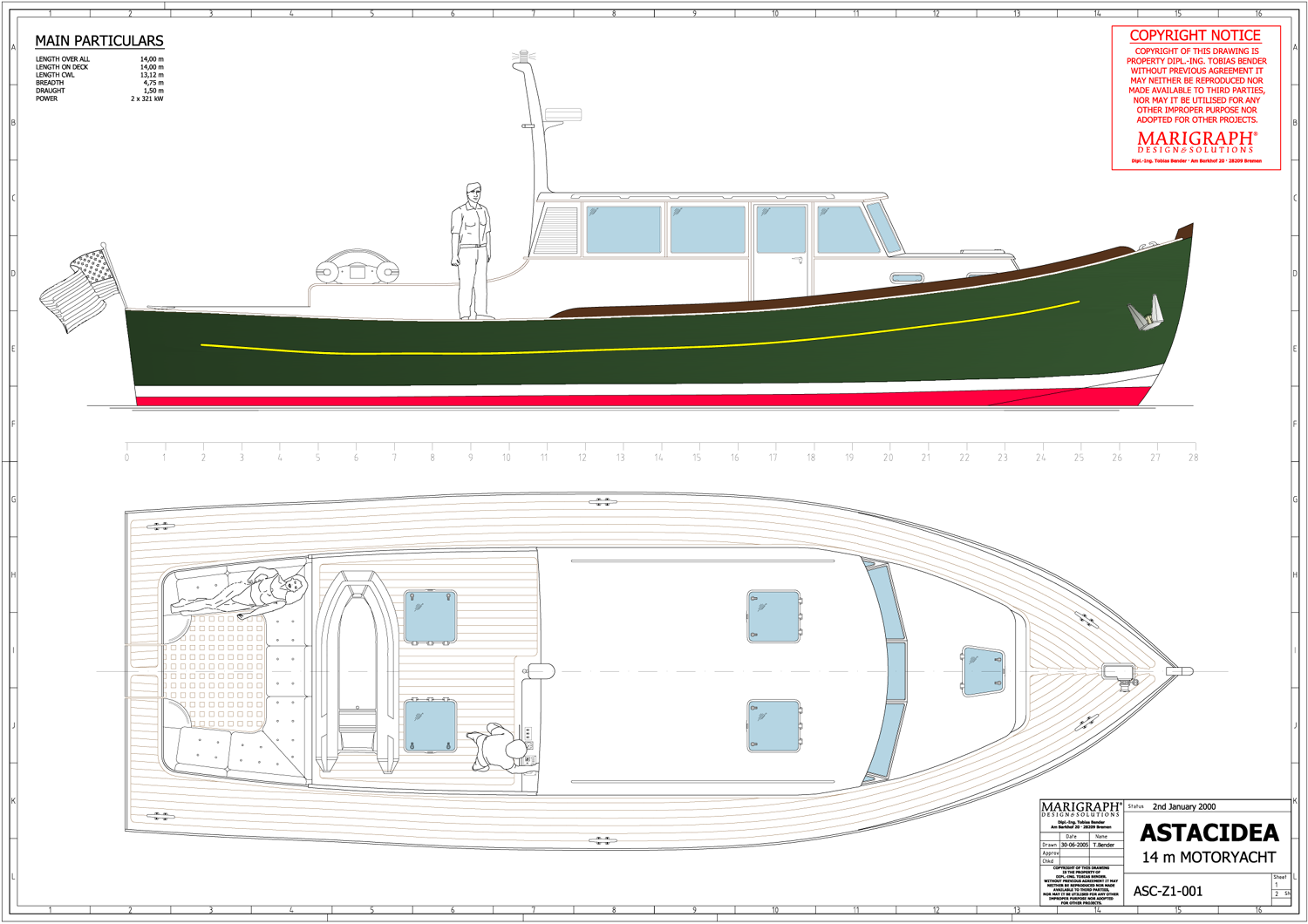

Astacidea

Main Particulars

Type: Motoryacht
Length o.a.: 14,00m
Breadth: 4,75m
Draught: 1,50m
Status: Preliminary design
Year: 2002

Design Description

Rustic motor yacht in dependence on the US East coast lobster boats.
