Design - Work boats

Sailing vessels Motor vessels Work boats Selected designs of work boats:

Aluminium Cargo Boat Helgoland

Main Particulars

Type: Aluminium Cargo Boat
Length o.a.: 14,25m
Breadth: 5,02m
Draught: 1,35m
Status: Design and engineering
Year: 2009

Design Description

Aluminium cargo boat for service on north-sea island Helgoland. Classification Germanischer Lloyd.

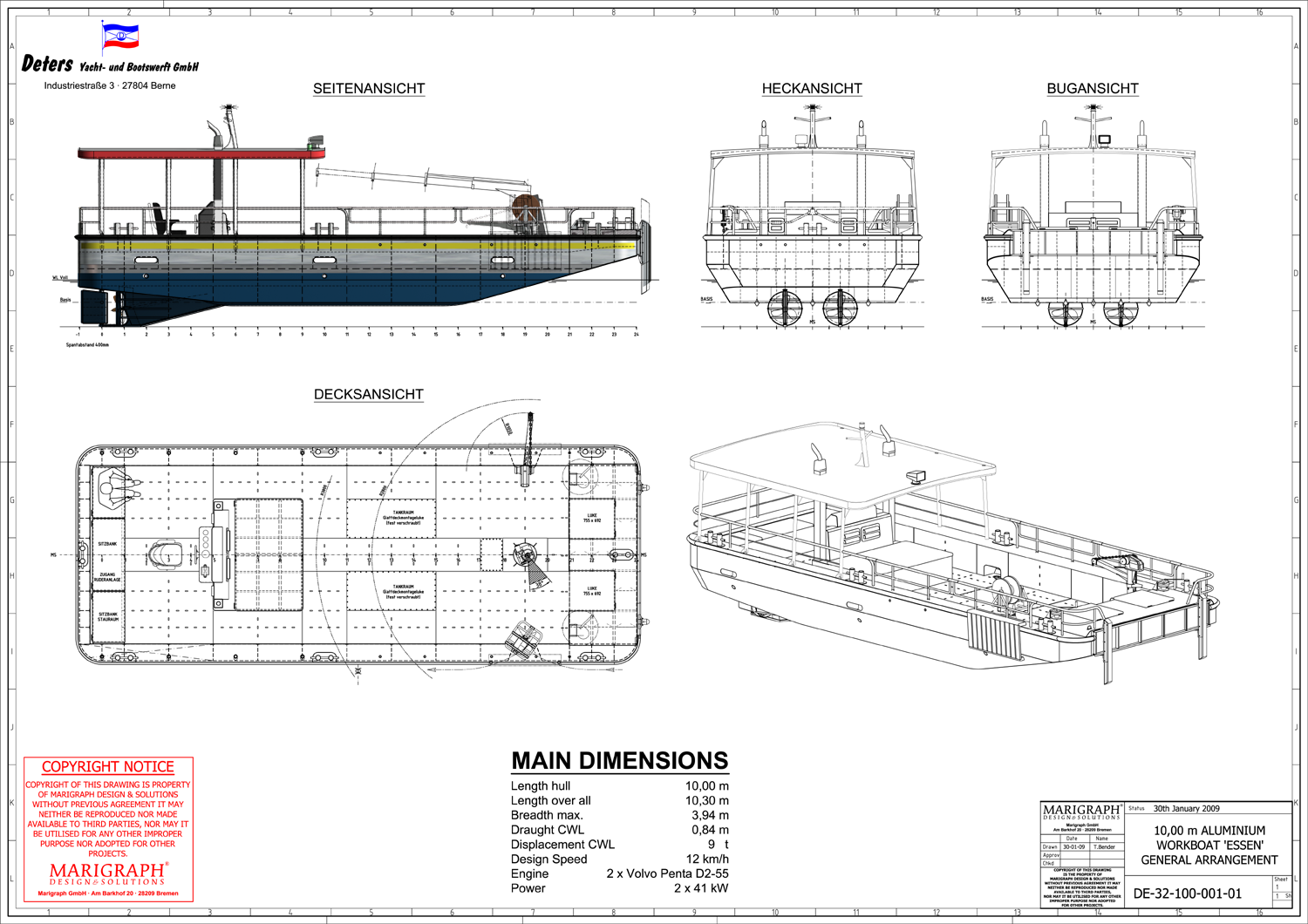

Aluminium Workboat Essen

Main Particulars

Type: Aluminium Workboat
Length o.a.: 10,30m
Breadth: 3,94m
Draught: 0,84m
Status: Design and engineering
Year: 2009

Design Description

Workboat with ponton-shaped hull for service and maintenance works on inland waters.

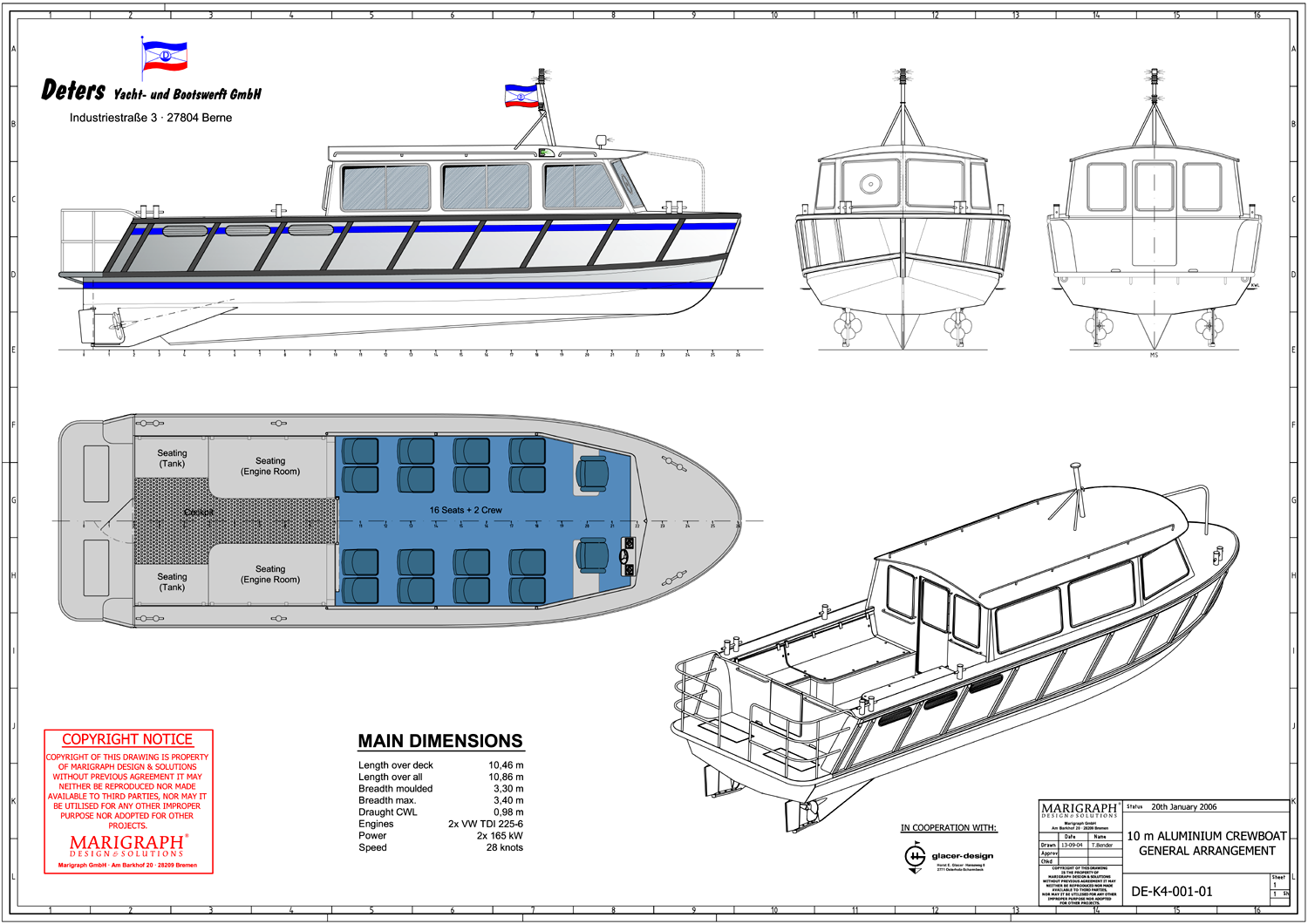

Deters Crewboat 1000

Main Particulars

Type: Aluminium Crewboat
Length o.a.: 10,86m
Breadth: 3,40m
Draught: 0,98m
Status: Design and engineering
Year: 2006

Further Information

Design Description

Fast crewboat, maximum speed up to 28 knots.

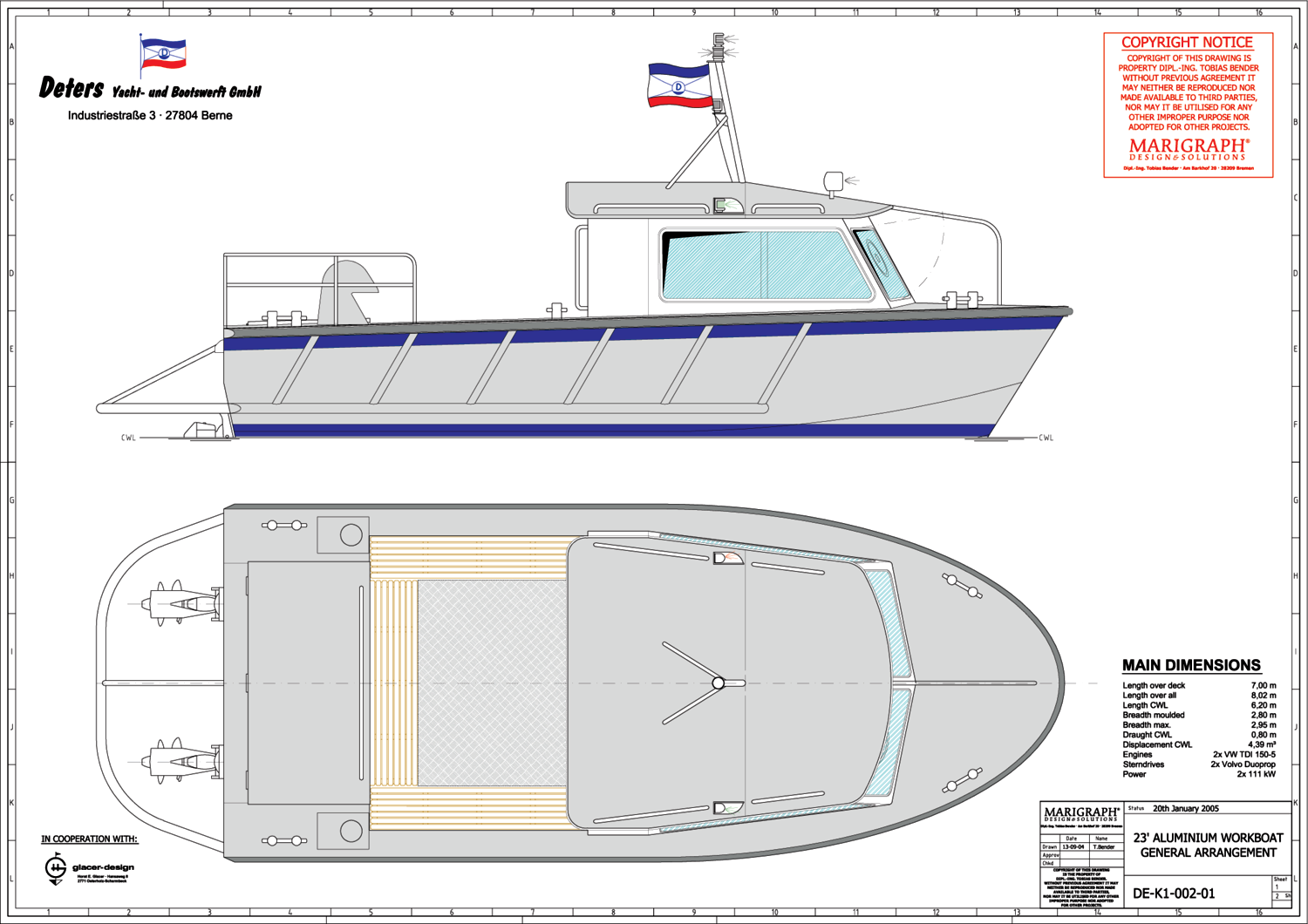

Deters Workboat 700

Main Particulars

Type: Aluminium Workboat
Length o.a.: 8,02m
Breadth: 2,95m
Draught: 0,80m
Status: Design and engineering
Year: 2004

Further Information

Design Description

Fast and versatile workboat for personnel and material transport, maximum speed up to 35 knots, excellent course steadiness, payload 18 persons or 2 tons cargo plus crew.

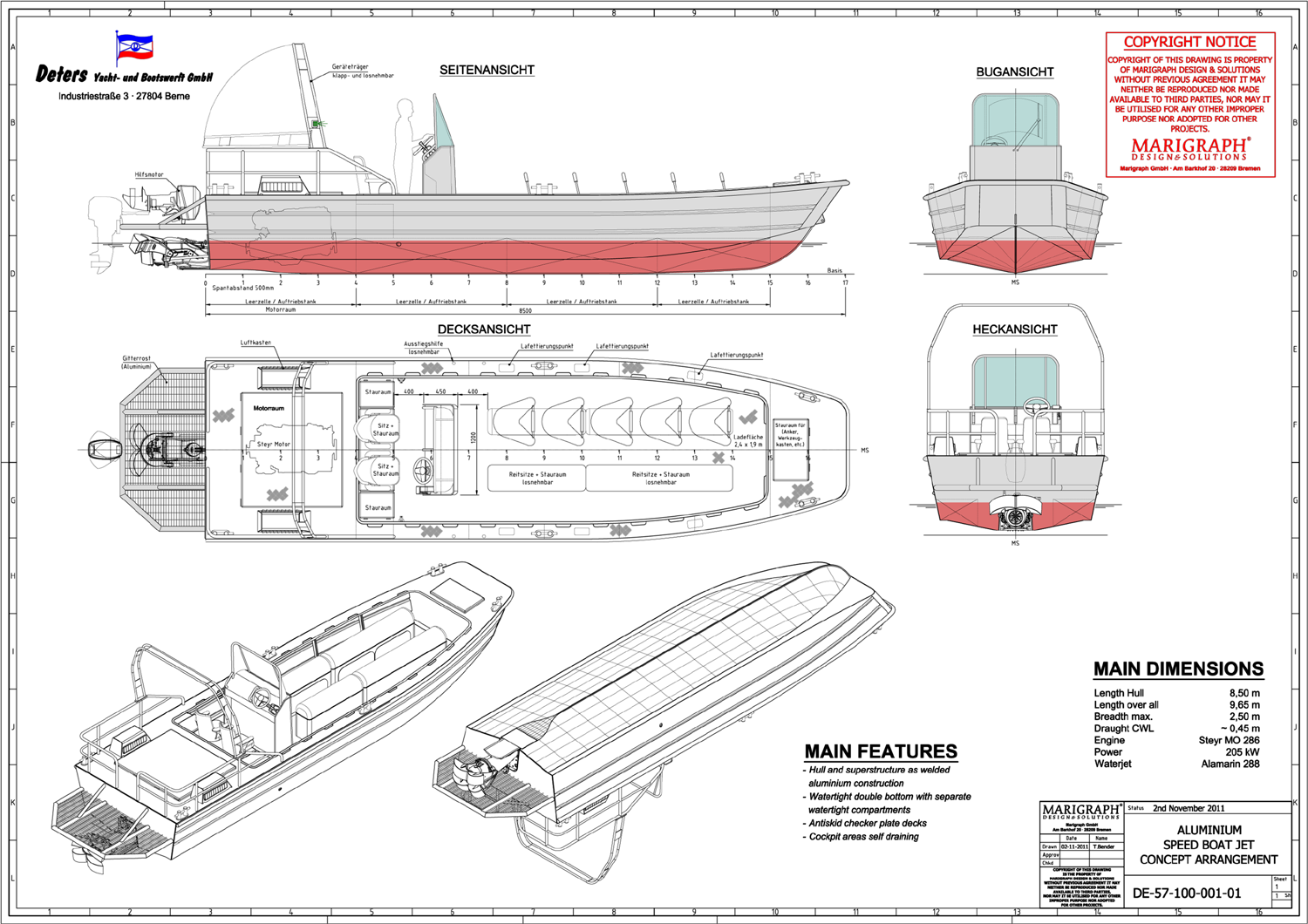

Deters Speed Boat 850 Jet

Main Particulars

Type: Aluminium Speedboat
Length o.a.: 8,50m
Breadth: 2,50m
Draught: 0,45m
Status: Concept design
Year: 2011

Design Description

Concept Design of an aluminium speed boat with jet propulsion for Deters Yacht- und Bootswerft.

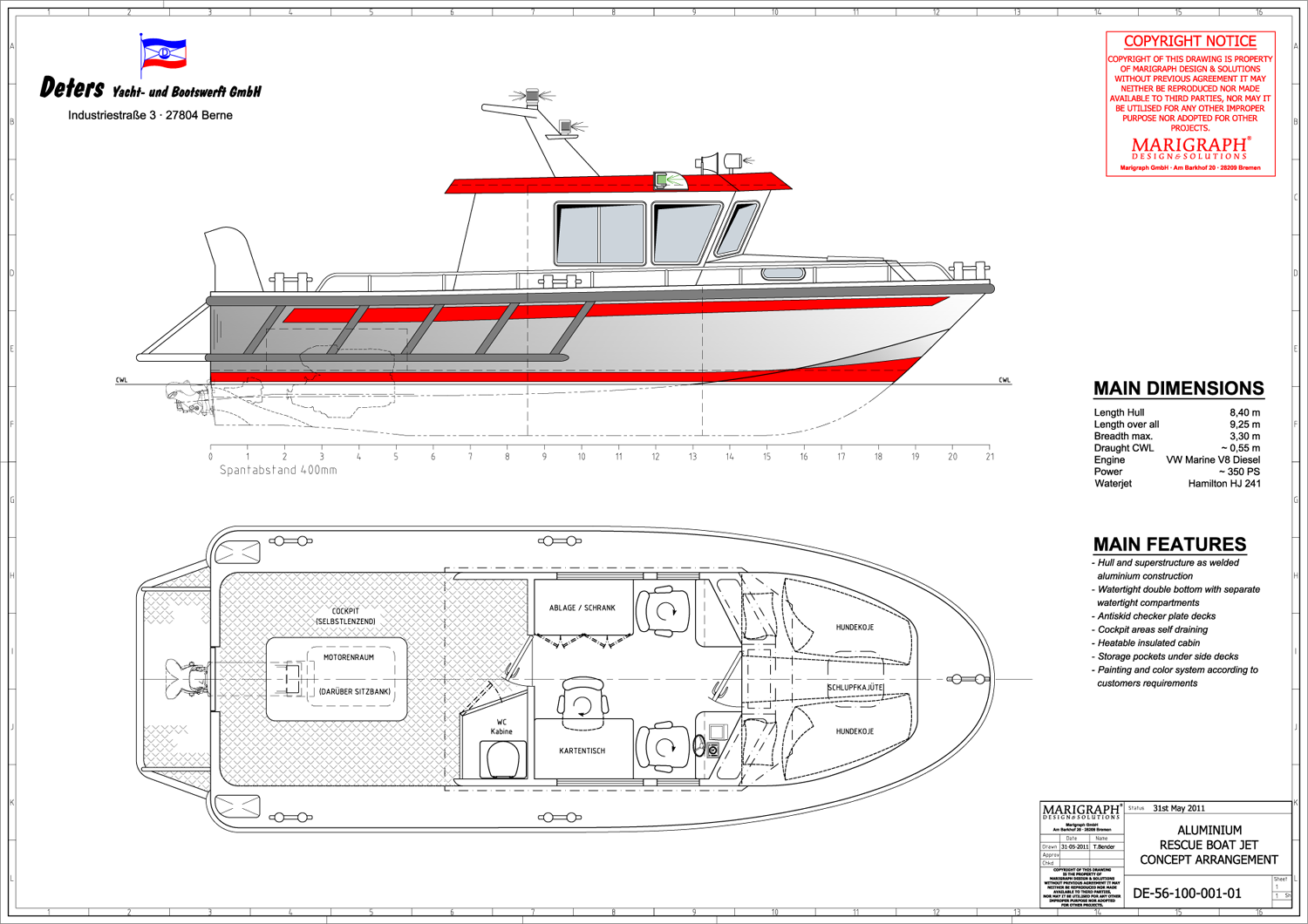

Deters Rescue Boat 850 Jet

Main Particulars

Type: Aluminium Rescueboat
Length o.a.: 9,25m
Breadth: 3,30m
Draught: 0,55m
Status: Concept design
Year: 2011

Further Information

Design Description

Concept Design of an aluminium rescue boat with jet propulsion for Deters Yacht- und Bootswerft.

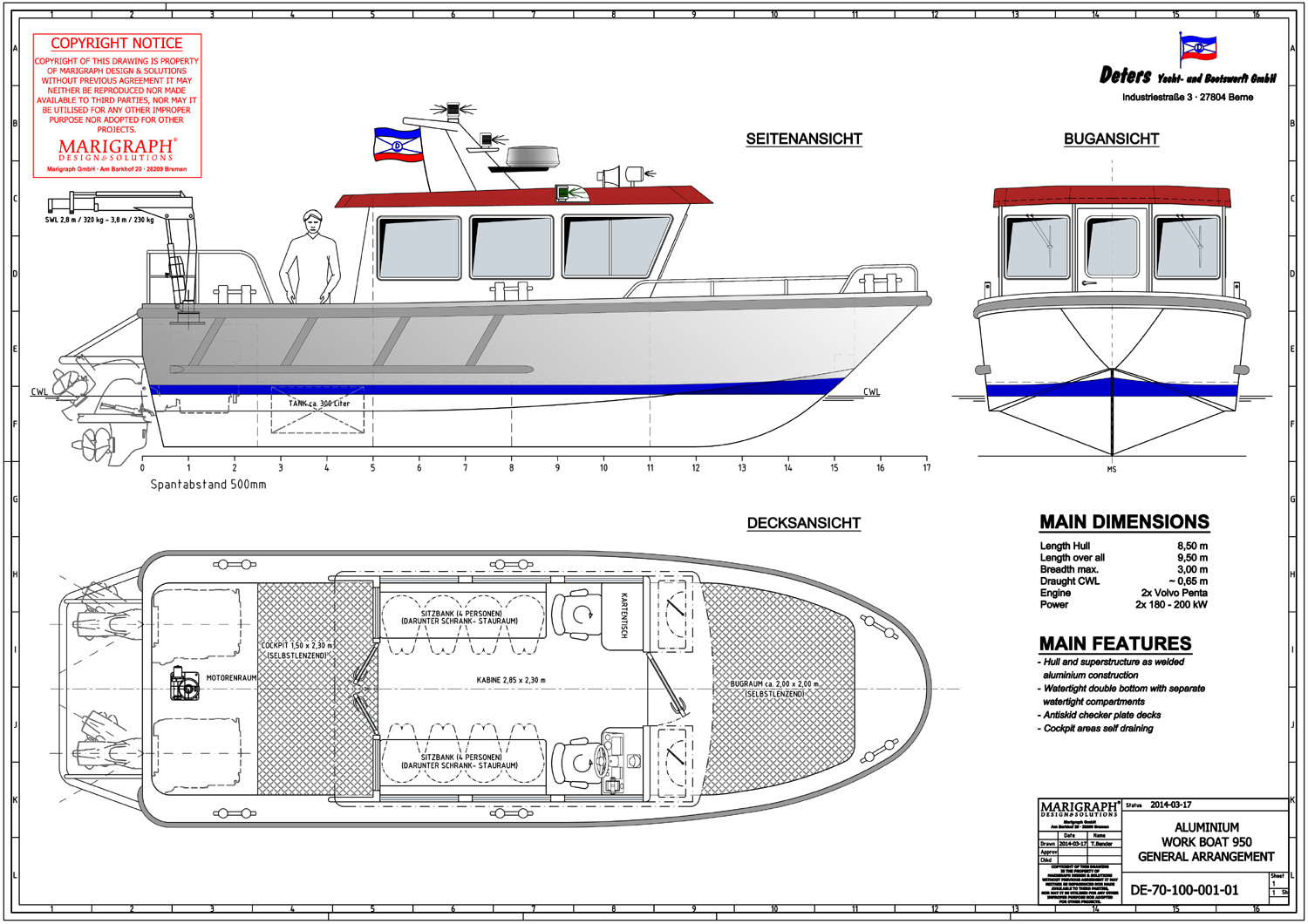

Deters Work Boat 950

Main Particulars

Type: Aluminium Work Boat
Length o.a.: 9,50m
Breadth: 3,00m
Draught: 0,65m
Status: Concept design
Year: 2014

Further Information

Design Description

Concept Design of an aluminium work boat for Deters Yacht- und Bootswerft.

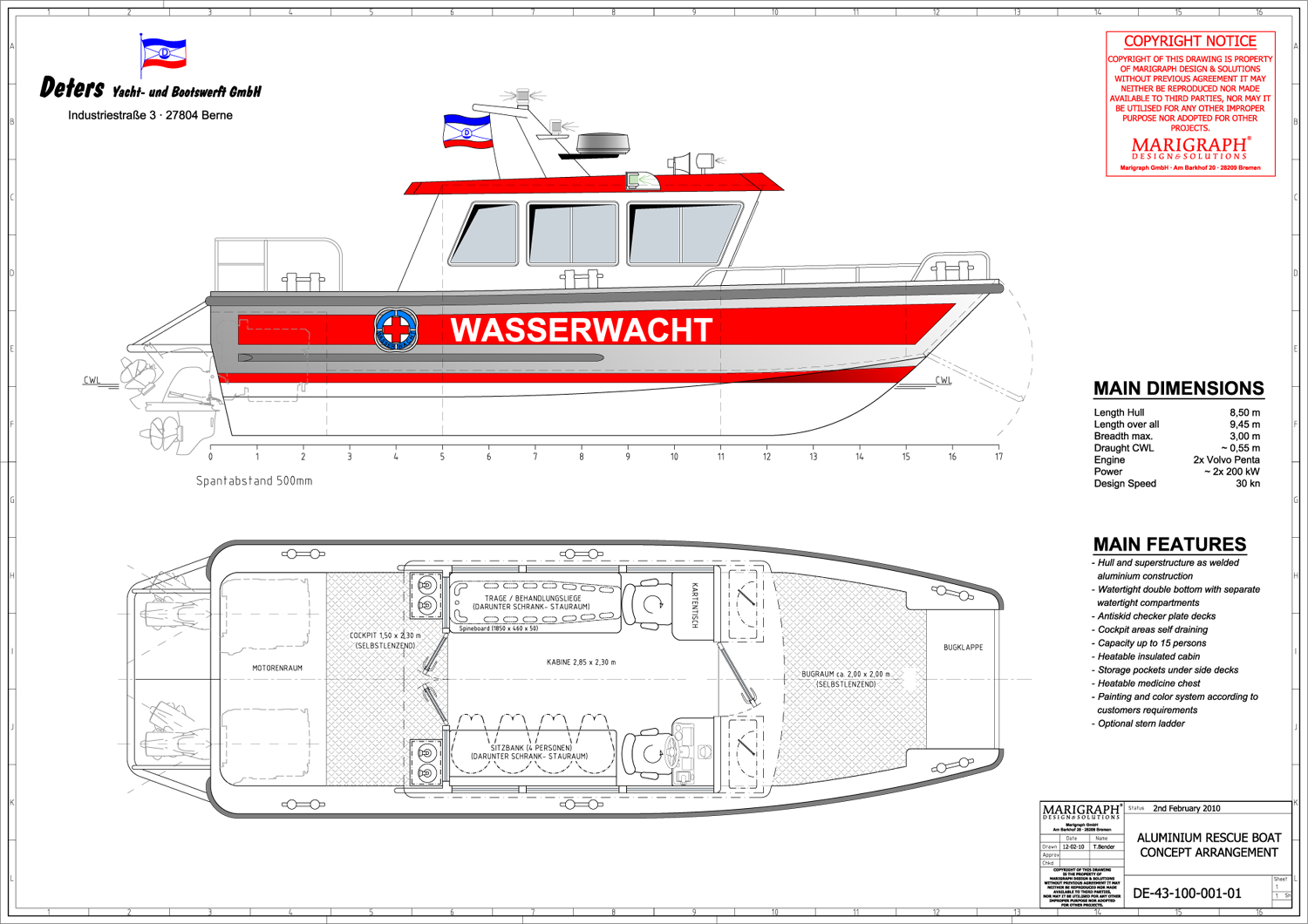

Deters Rescue Boat 850

Main Particulars

Type: Aluminium Rescueboat
Length o.a.: 8,50m
Breadth: 3,00m
Draught: 0,55m
Status: Concept design
Year: 2010

Further Information

Design Description

Concept Design of an aluminium rescue boat for Deters Yacht- und Bootswerft.

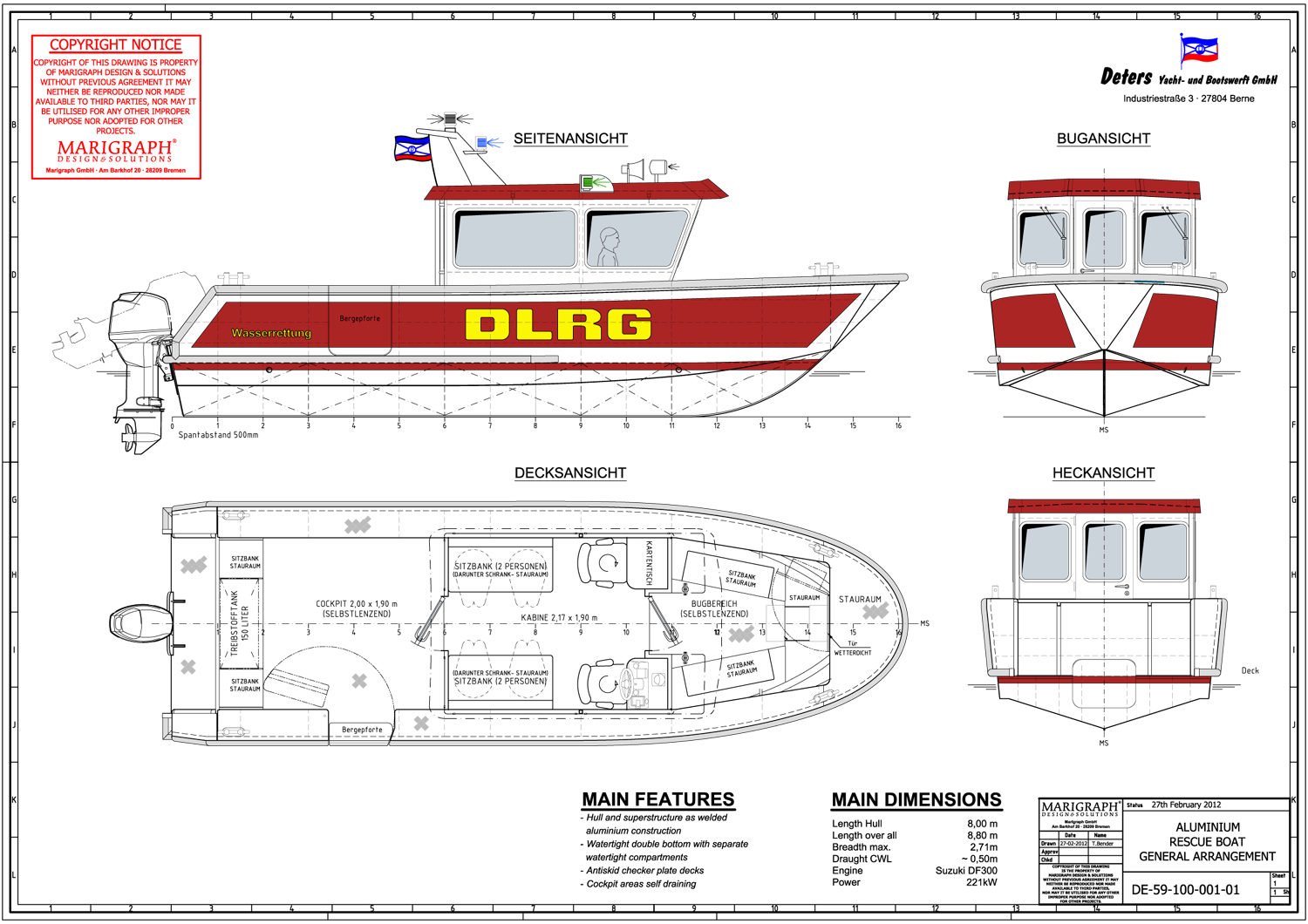

Deters Rescue Boat 750

Main Particulars

Type: Aluminium Rescue Boat
Length o.a.: 8,00m
Breadth: 2,71m
Draught: 0,50m
Status: Design and engineering
Year: 2012

Design Description

Fast V-Hull rescueboat with cabin.

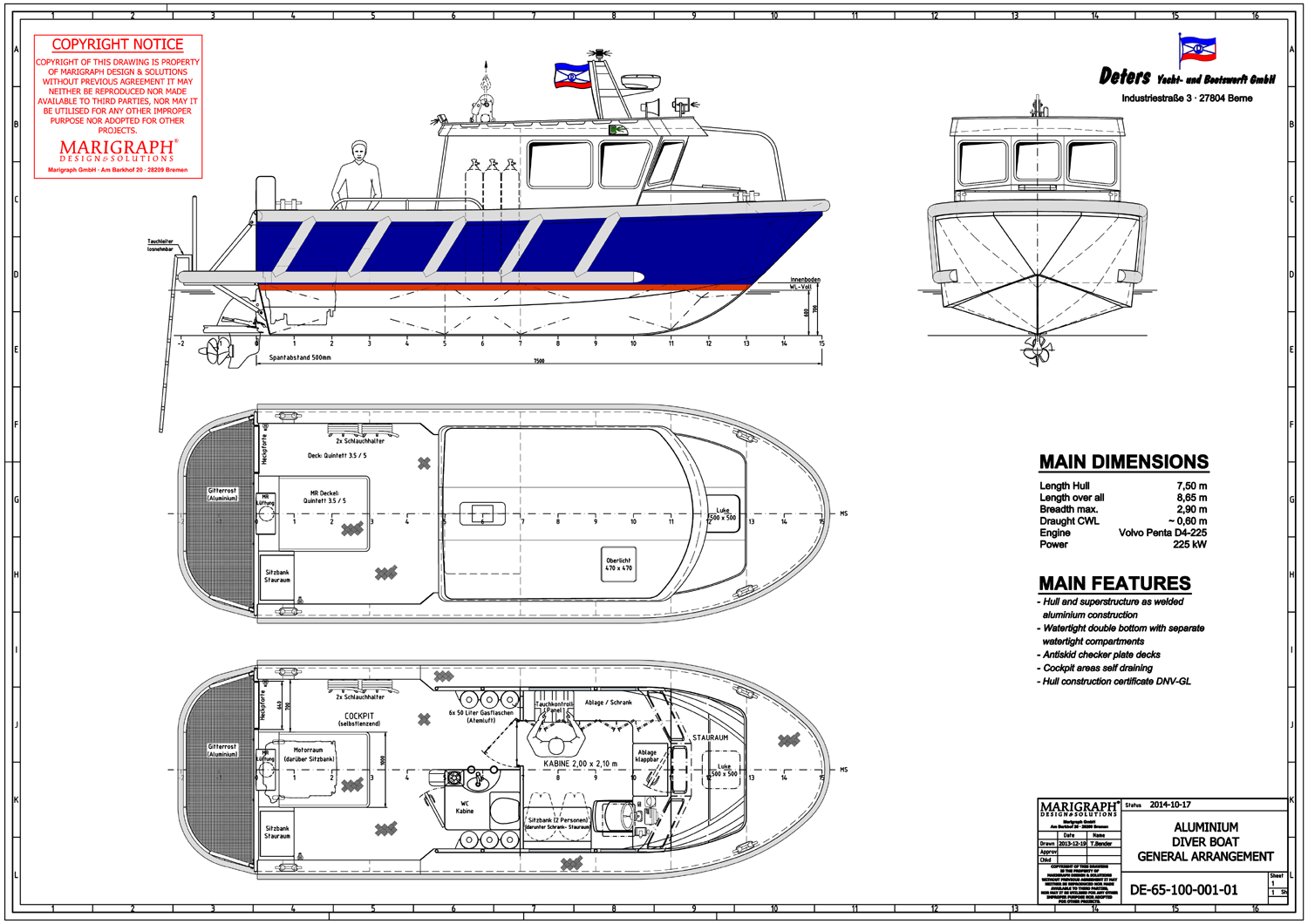

Deters Diver Boat

Main Particulars

Type: Aluminium Diver Boat
Length o.a.: 8,65m
Breadth: 2,90m
Draught: 0,60m
Status: Design and engineering
Year: 2014

Design Description

Aluminium diver boat for use as tenderboat in offshore-service. Hull construction certificate DNV-GL.

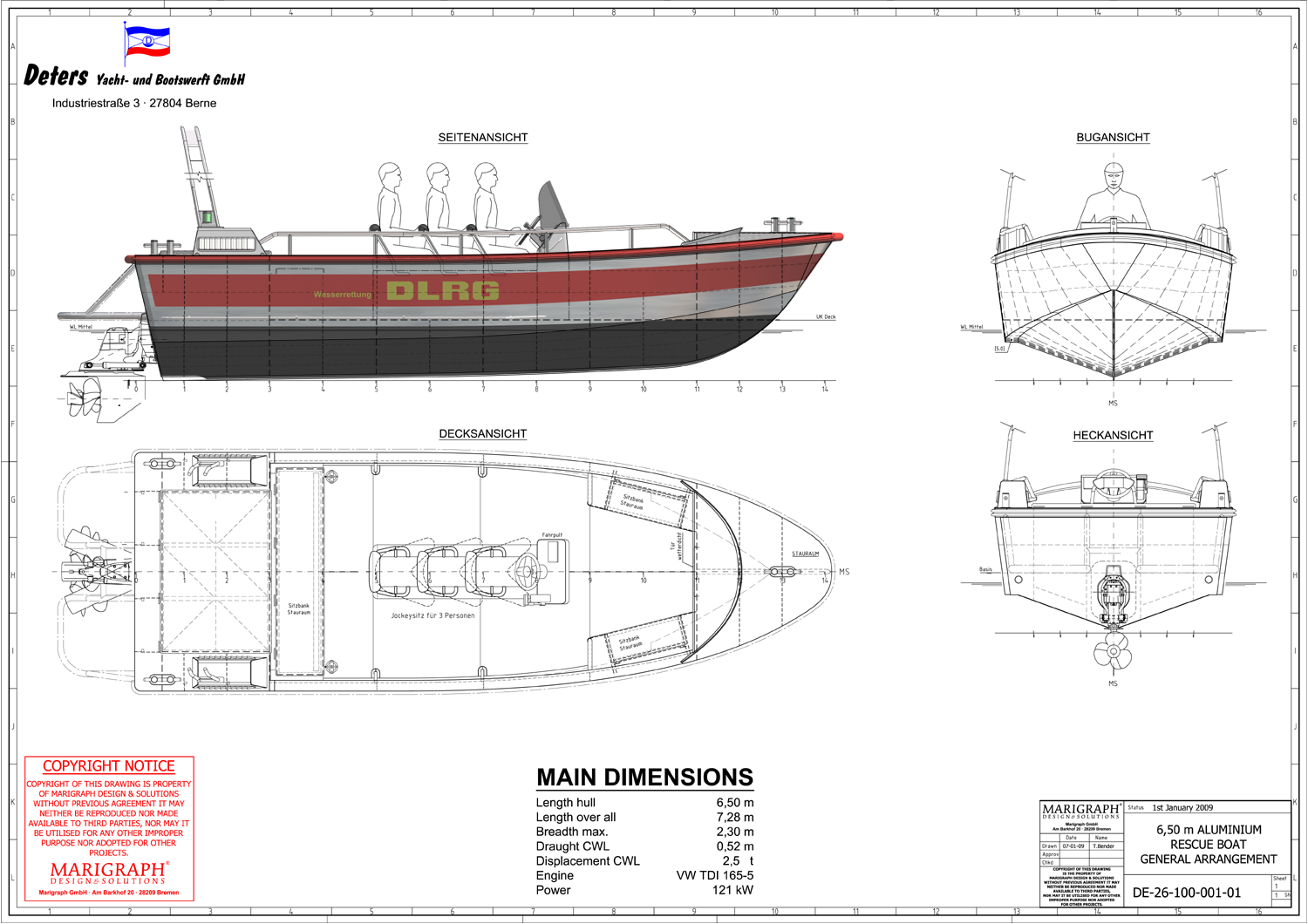

Deters Rescue Boat 650 V

Main Particulars

Type: Aluminium Rescueboat
Length o.a.: 6,50m
Breadth: 2,30m
Draught: 0,52m
Status: Design and engineering
Year: 2009

Design Description

Fast V-Hull rescueboat for rough sea service.

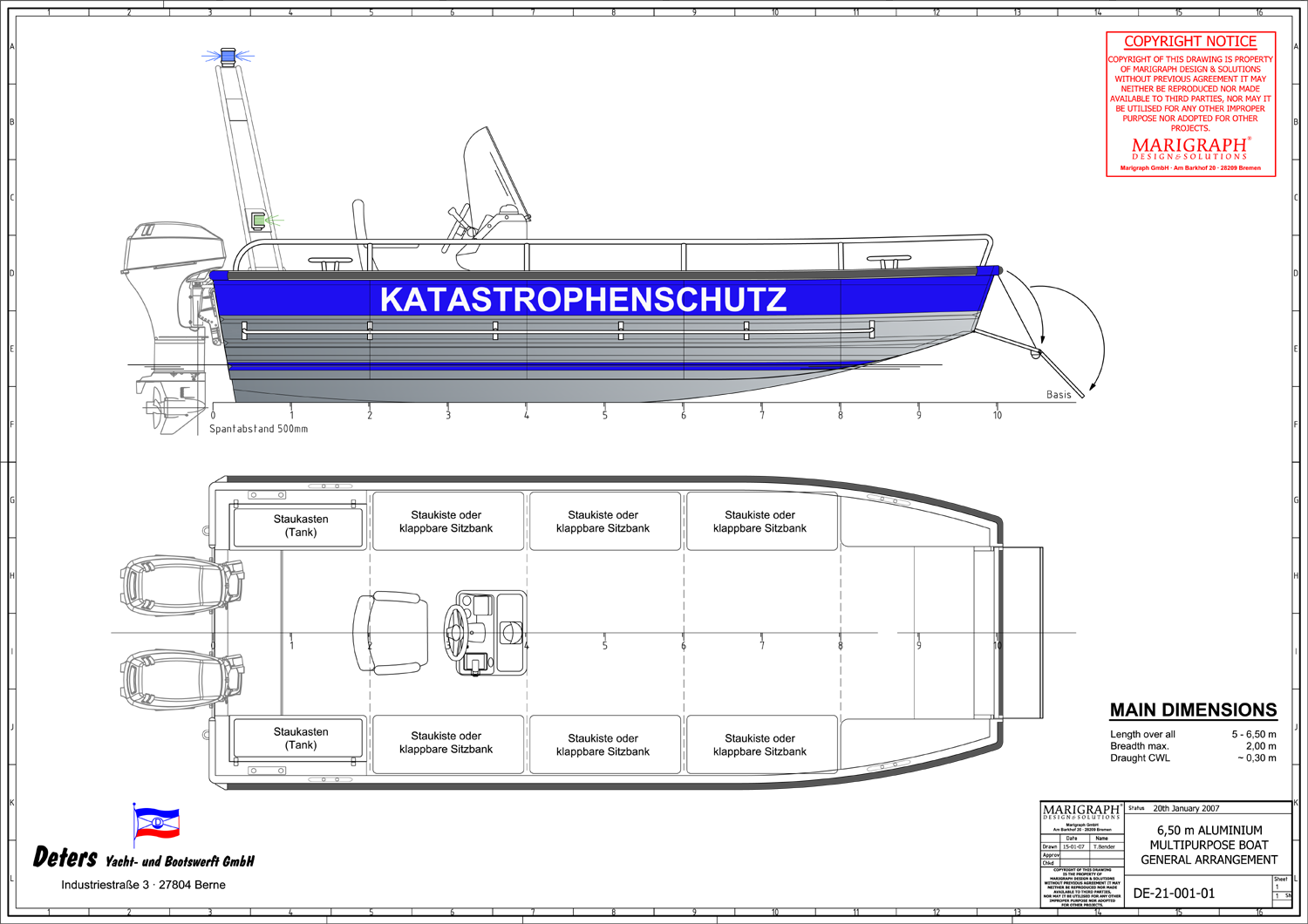

Deters Multipurpose Boat 650

Main Particulars

Type: Aluminium Multipurpose Boat
Length o.a.: 6,50m
Breadth: 2,44m
Draught: 0,36m
Status: Design and engineering
Year: 2007

Design Description

Universal multipurpose boat with bow door.

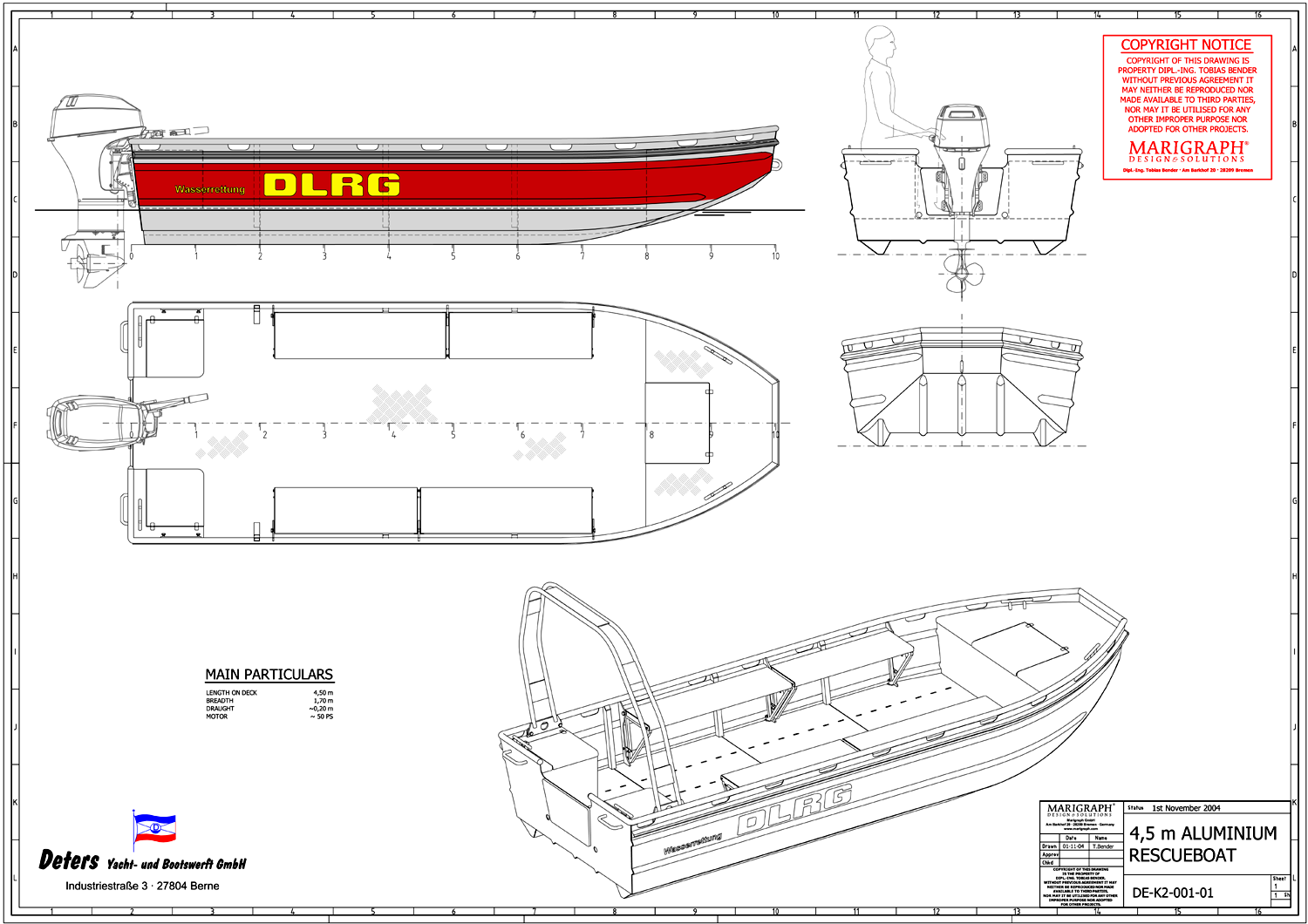

Deters Mutipurpose Boat 450

Main Particulars

Type: Aluminium Rescueboat
Length o.a.: 4,50m
Breadth: 1,70m
Draught: 0,20m
Status: Design and engineering
Year: 2005

Further Information

Design Description

Lightweight and solid aluminium boat for rescue and civil protection services.

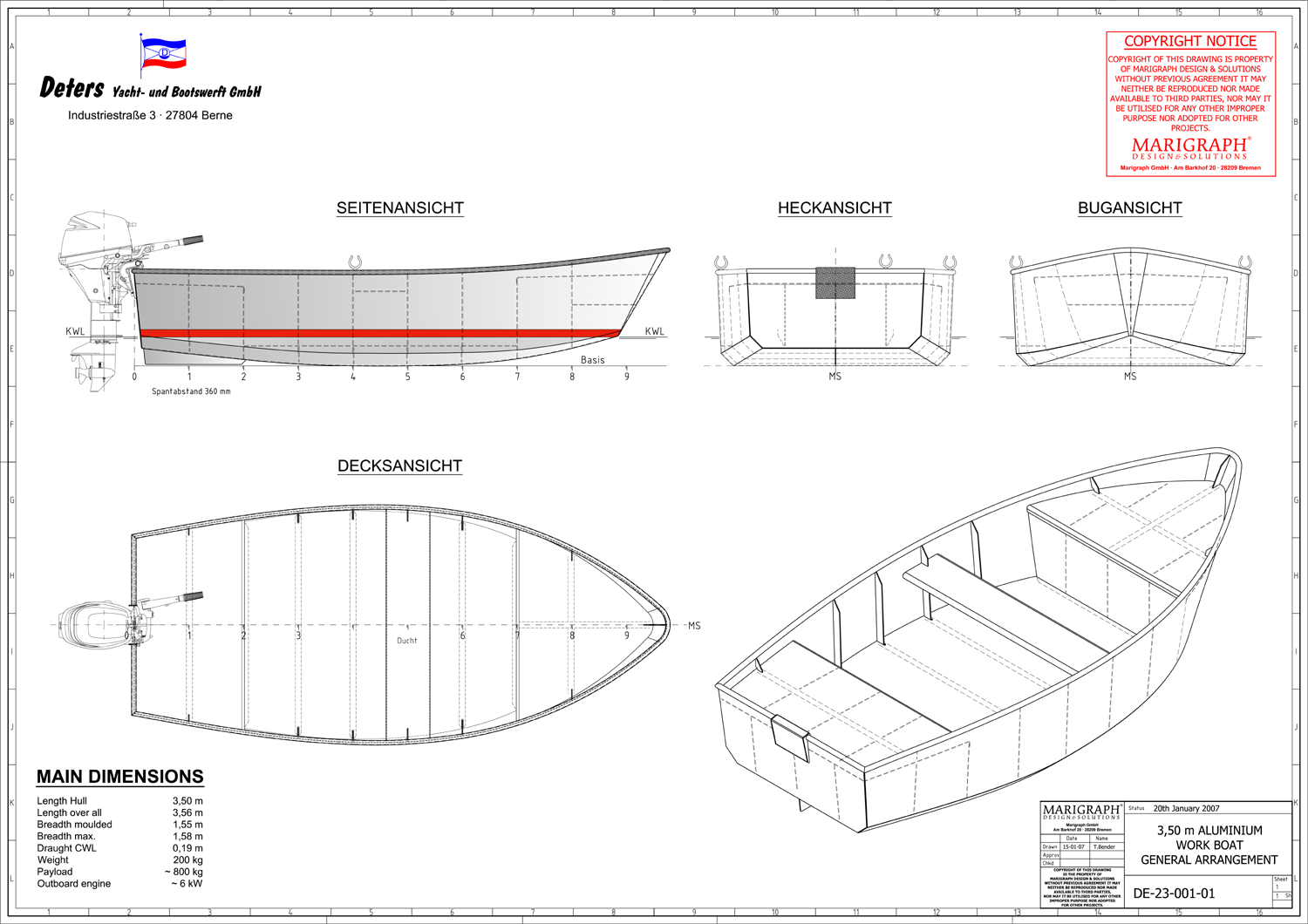

Deters Workboat 350

Main Particulars

Type: Aluminium Workboat
Length o.a.: 3,50m
Breadth: 1,58m
Draught: 0,19m
Status: Design and engineering
Year: 2007

Further Information

Design Description

Solid small Workboat for transport of personnel and material.

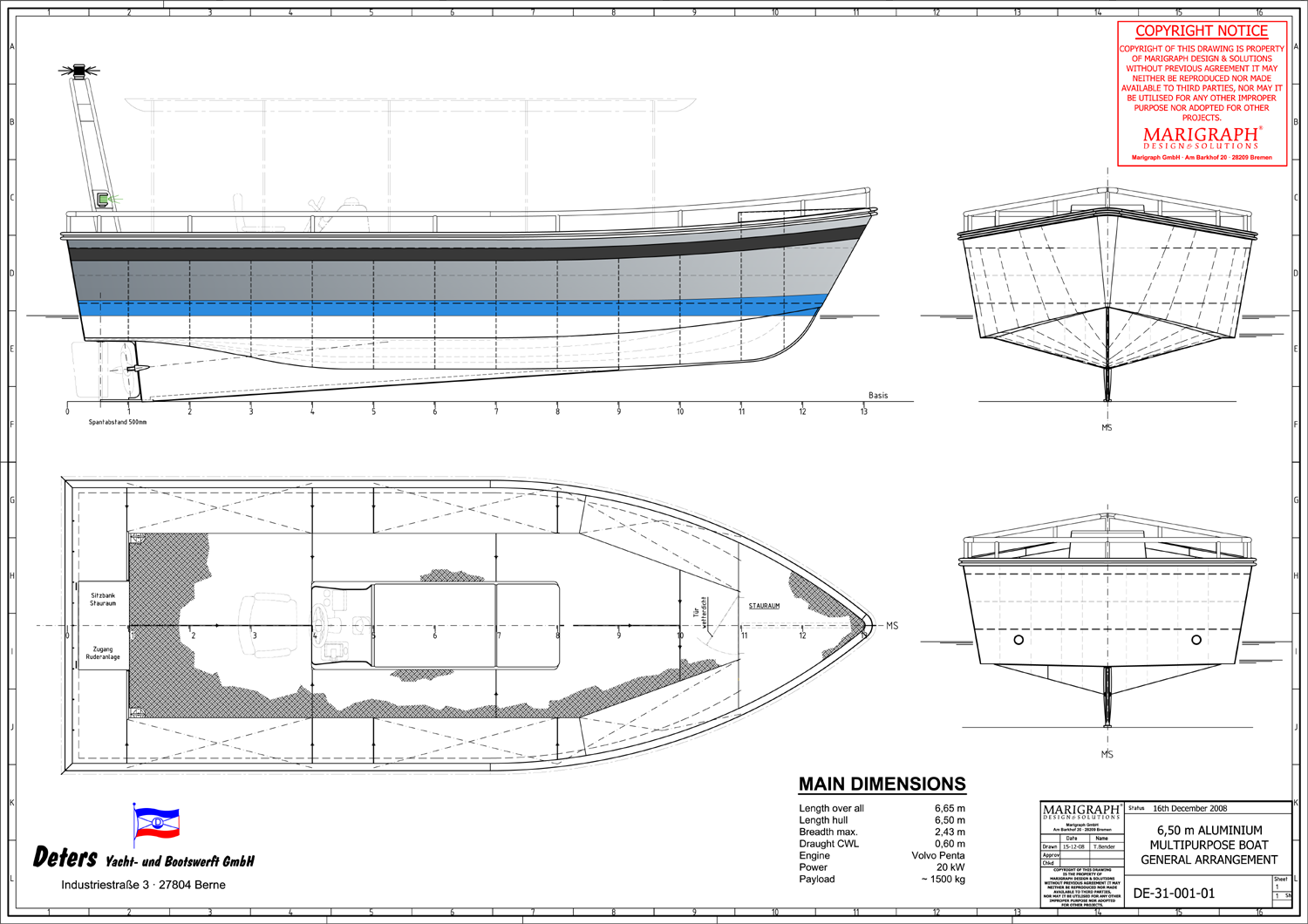

Deters Multipurpose Boat 650 EB

Main Particulars

Type: Aluminium Multipurpose Boat
Length o.a.: 6,65m
Breadth: 2,43m
Draught: 0,60m
Status: Design and engineering
Year: 2008

Further Information

Design Description

Sound aluminium multipurpose boat for transport of personnel and material.

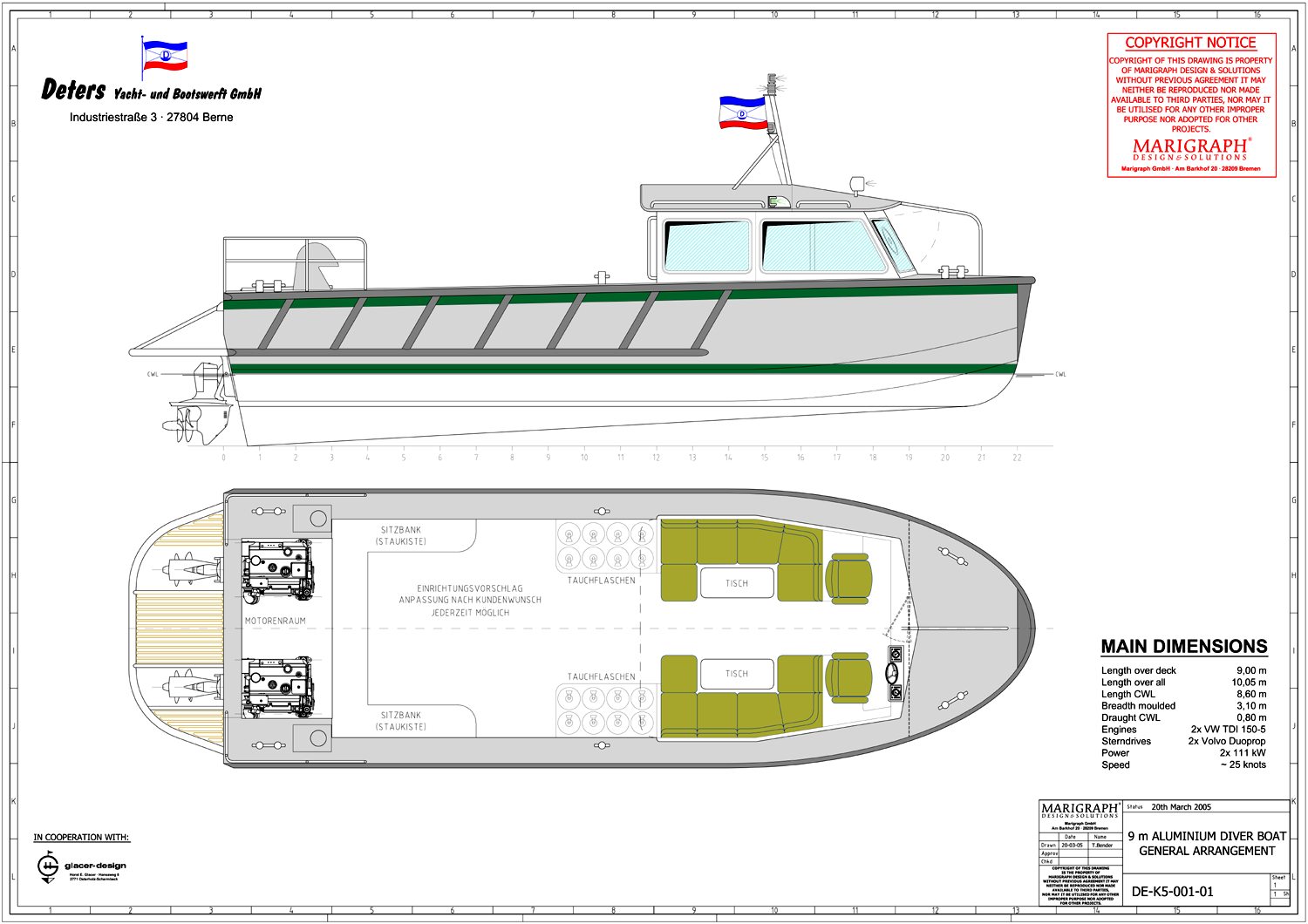

Deters Diver Boat

Main Particulars

Type: Aluminium Diver Boat
Length o.a.: 10,05m
Breadth: 3,10m
Draught: 0,80m
Status: Preliminary design
Year: 2005

Further Information

Design Description

Lightweight and solid aluminium boat for diving works.

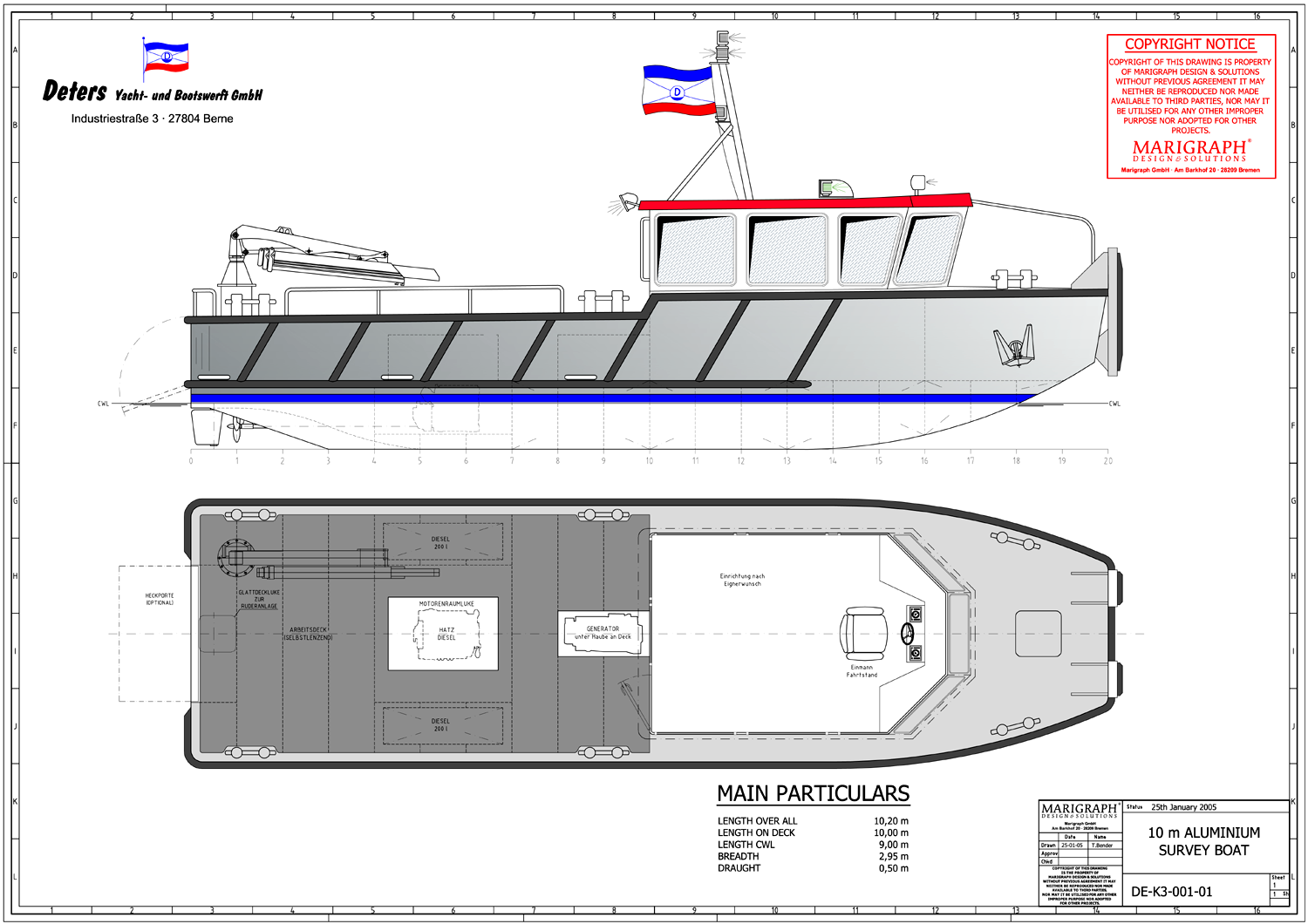

10m Surveyboat

Main Particulars

Type: Aluminium Survey Boat
Length o.a.: 10,20m
Breadth: 2,95m
Draught: 0,50m
Status: Preliminary design
Year: 2005

Further Information

Design Description

Survey boat for shallow waters and tideland areas.
